Válvula

de latón

Productos de válvulas

Válvula de bola

RK-1001

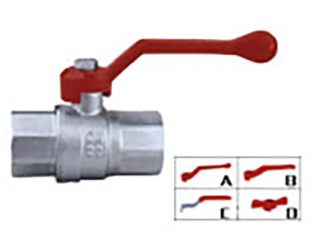

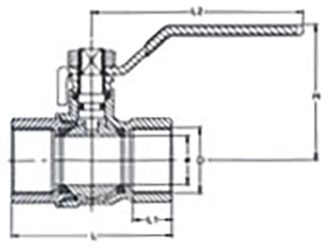

Brass-valve-ball-valve-1-1
Brass-valve-ball-valve-1-2
DN Talla ф(mm) L L1 L2 H
10 3/8″
15 1/2″ 15 59 15 84 51
20 3/4″ 20 72 18 84 54.5
25 1″ 25 82 20 115 63.8
32 1, 1/4″ 32 98 23 115 74.5
40 1, 1/2″ 39.5 105 23 158 83
50 2″ 50 125 27 158 91.3

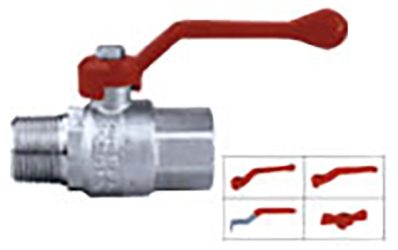

Válvula de bola

RK-1002

Brass-valve-ball-valve-2-1

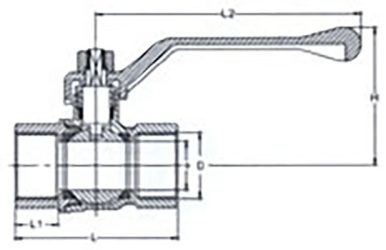

Brass-valve-ball-valve-2-2
DN Talla ф(mm) L L1 L2 H
10 3/8″
15 1/2″ 15 59 15 84 51
20 3/4″ 20 72 18 84 54.5
25 1″ 25 82 20 115 63.8
32 1, 1/4″ 32 98 23 115 74.5
40 1, 1/2″ 39.5 105 23 158 83
50 2″ 50 125 27 158 91.3

Válvula de bola

RK-1003

Brass-valve-ball-valve-3-1

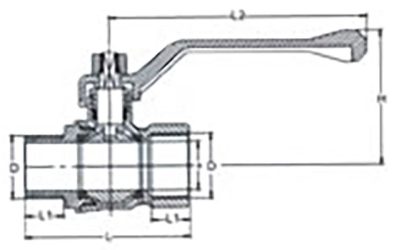

Brass-valve-ball-valve-3-2
DN Talla ф(mm) L L1 L2 H
10 3/8″
15 1/2″ 15 73 22 84.5 46.3
20 3/4″ 19 79.5 23.5 84.5 49
25 1″ 25 90 22 114.5 59
32 1, 1/4″ 32 100.5 26 114.5 69
40 1, 1/2″ 40 117 26 144 80
50 2″ 47 135 31 144 88

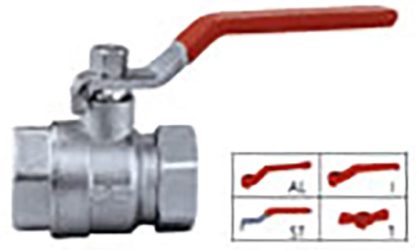

Válvula de bola

RK-1004

Brass-valve-ball-valve-4-1

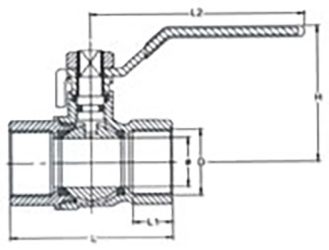

Brass-valve-ball-valve-4-2
DN Talla ф(mm) L L1 L2 H
10 3/8″
15 1/2″ 14.8 48.5 10 99 50
20
3/4″
19
54.5
11
99
52
25
1″
24
64
13.5
125
60
32
1, 1/4″
30
76
15
140
75
40
1, 1/2″
37
88
16
140
80
50
2″
45
98
16
165
90
65
2, 1/2″
62
134
23
224
118.5
80
3″
74
152.5
27
282.5
127.5
100
4″
90
179
30
282.5
138.5

Válvula de bola

RK-1005

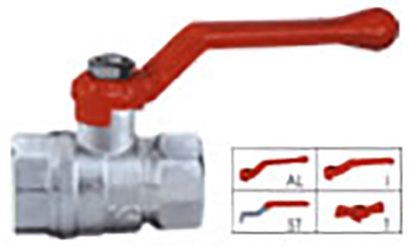

Brass-valve-ball-valve-5-1

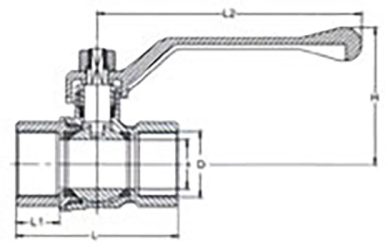

Brass-valve-ball-valve-5-2
DN
 Talla
ф(mm)
L
L1
L2
H
10
3/8″
15
1/2″
14
47
9.5
85
50
20
3/4″
18
52
11
85
52
25
1″
23
63.5
13.5
98.5
61.5
32
1, 1/4″
30
74
14
128
70
40
1, 1/2″
37
83
13.5
128
73.5
50
2″
45
94
15
153
94.5

Válvula de bola

RK-1006

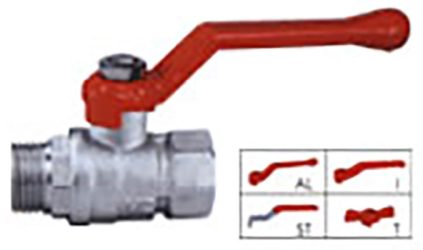

Brass-valve-ball-valve-6-1

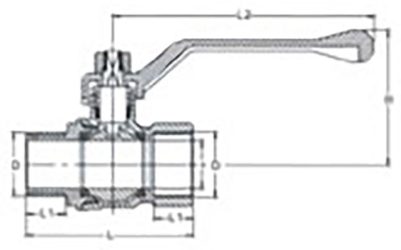

Brass-valve-ball-valve-6-2
DN
 Talla
ф(mm)
L
L1
L2
H
10
3/8″
15
1/2″
14
47
9.5
85
50
20
3/4″
18
52
11
85
52
25
1″
23
63.5
13.5
98.5
61.5
32
11/4″
30
74
14
128
70
40
11/2″
37
83
13.5
128
73.5
50
2″
45
94
15
153
94.5

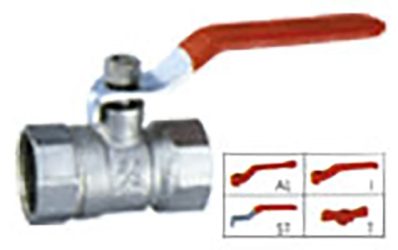

Válvula de bola

RK-1007

Brass-valve-ball-valve-7-1

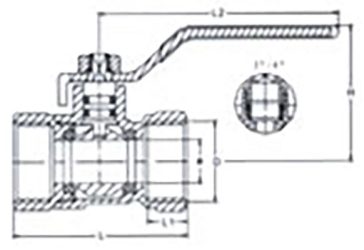

Brass-valve-ball-valve-7-2
DN
 Talla
ф(mm)
L
L1
L2
H
15
1/2″
11
48
12.5
84.5
39.3
20
3/4″
14.8
54
13
84.5
43.5
25
1″
19
62
14
114.5
49
32
11/4″
24
67.5
14.5
114.5
60.3
40
11/2″
30
77
15
144
69
50
2″
39.5
89
15
144
75.5
65
21/2″
49.5
116
21
240
106.2
80
3″
62
135
22
240
128
100
4″
75
158
26
240
138

Válvula de bola

RK-1008

Brass-valve-ball-valve-8
DN
 Talla
Box/Ctn
15
15mm
-/200

Válvula de bola

RK-1009

Brass-valve-ball-valve-9
DN
 Talla
ф(mm)
L
L1
L2
H
8
1/4″
6
42.5
12.5
23
26
10
3/8″
8
42.5
11
23
27
15
1/2″
10
45.5
11.5
23
31.5

Válvula de bola

RK-1010

Brass-valve-ball-valve-10
DN
 Talla
ф(mm)
L
L1
L2
H
8
1/4″
6
42.5
12.5
23
26
10
3/8″
8
42.5
11
23
27
15
1/2″
10
45.5
11.5
23
31.5

Válvula de bola

RK-1011

Brass-valve-ball-valve-11
DN
 Talla
ф(mm)
L
L1
L2
H
8
1/4″
8
40
9
23
26.2
10
3/8″
8
42
11
23
26.2
15
1/2″
10
46
11
23
28.5

Válvula de bola

RK-1012

Brass-valve-ball-valve-12
DN
 Talla
ф(mm)
L
L1
L2
H
8
1/4″
8
40
10
23.5
37
10
3/8″
8
42
10
23.5
38.5
15
1/2″
10
46
11.5
23.5
44.5

Válvula de bola

RK-1013

Brass-valve-ball-valve-13
DN
 Talla
15
1/2″
20
3/4″

Válvula de bola

RK-1014

Brass-valve-ball-valve-14
DN
 Talla
15
1/2″
20
3/4″

Válvula de bola

RK-1015

Brass-valve-ball-valve-15
DN
 Talla
15
1/2″
20
3/4″
25
1″
32
11/4″
40
11/2″

Válvula de bola

RK-1016

Brass-valve-ball-valve-16
DN
 Talla
Box/Ctn
15
1/2″
20/100
20
3/4″
15/60
25
1″
12/48
32
11/2″
6/30

Válvula de bola

RK-1017

Brass-valve-ball-valve-17
DN
Talla
Box/Ctn
15
1/2″
10/50
20
3/4″
8/40
25
1″

Válvula de bola

RK-1018

Brass-valve-ball-valve-18
DN
Talla
Box/Ctn
15
1/2″
10/50
20
3/4″
8/40
25
1″
