Racores
ATORNILLADOS
Productos de niple y enchufe

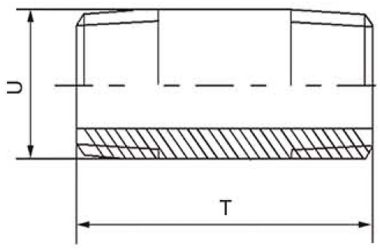

NIPLES DE BARRIL
(HPL020)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| U | 10.20 | 14.00 | 17.00 | 21.50 | 26.80 | 34.00 | 42.70 | 48.80 | 61.00 | 77.50 | 90.00 | 115.80 |
| T | 40.00 | 40.00 | 40.00 | 60.00 | 60.00 | 60.00 | 80.00 | 80.00 | 100.00 | 100.00 | 120.00 | 120.00 |
NIPLES DE SOLDADURA
(HPL021)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| U | 10.20 | 14.00 | 17.00 | 21.50 | 26.80 | 34.00 | 42.70 | 48.80 | 61.00 | 77.50 | 90.00 | 115.80 |
| T | 30.00 | 30.00 | 30.00 | 35.00 | 40.00 | 40.00 | 50.00 | 50.00 | 50.00 | 60.00 | 70.00 | 80.00 |

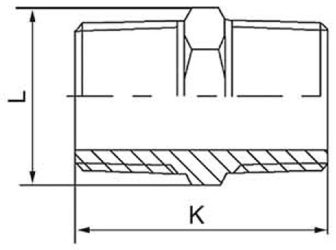

NIPLES HEXAGONALES
(HPL022A)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| L | 10.80 | 14.50 | 17.50 | 21.50 | 27.50 | 34.00 | 42.50 | 49.00 | 61.00 | 76.50 | 90.00 | 116.00 |
| K | 25.00 | 25.00 | 29.50 | 35.00 | 39.00 | 44.00 | 49.50 | 49.50 | 58.50 | 64.00 | 76.00 | 86.50 |
NIPLES HEXAGONALES
(HPL022B)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| L | 13.00 | 14.00 | 17.50 | 22.00 | 27.50 | 34.50 | 43.50 | 49.00 | 61.00 | 77.00 | 91.00 | 116.00 |
| K | 28.00 | 30.00 | 35.00 | 38.00 | 43.00 | 48.00 | 54.00 | 56.00 | 64.00 | 72.00 | 78.00 | 86.00 |

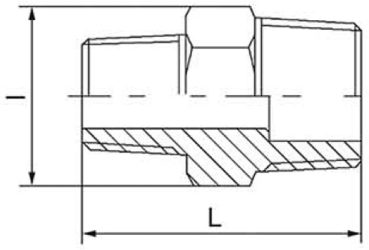

NIPLES HEXAGONALES REDUCTORES
(HPL023)
| Talla |
1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | |||||||||||
| I | 14.50 | 17.50 | 21.50 | 27.50 | 34.00 | 42.50 | 49.00 | 61.00 | 76.50 | 90.00 | 116.00 |
| L | 26.50 | 29.00 | 32.50 | 37.00 | 41.50 | 47.00 | 50.00 | 54.50 | 61.50 | 69.00 | 82.50 |
BUJE NEG
(HPL024)
| Talla |
1/4 x 1/8" | 3/8 x 1/4" | 1/2 x 1/2" | 3/4 x 1/2" | 1 x 1/2" | 1 x 3/4" | 1-1/4 x 1" | 1-1/2 x 1" | 2 x 1-1/4" | 2 x 1-1/2" |
|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||
| L | 26.00 | 27.50 | 33.50 | 34.50 | 37.50 | 39.50 | 48.00 | 48.50 | 52.50 | 54.50 |
| E | 16.50 | 20.50 | 25.50 | 30.50 | 38.00 | 38.00 | 47.50 | 52.50 | 65.50 | 65.50 |

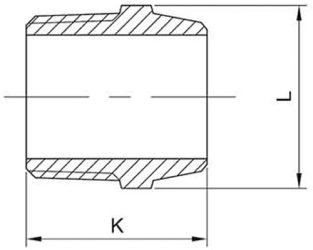

NIPLES DE SOLDADURA HEXAGONALES
(HPL025)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| L | 11.40 | 15.00 | 18.50 | 23.00 | 28.60 | 35.50 | 44.20 | 51.00 | 63.00 | 81.00 | 92.50 | 126.40 |
| K | 25.80 | 30.50 | 31.80 | 36.50 | 38.20 | 43.00 | 49.20 | 54.00 | 55.60 | 70.00 | 72.00 | 80.00 |
Enchufe con banda
(HPL026)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| O | 15.00 | 19.00 | 22.50 | 26.50 | 32.00 | 38.50 | 48.00 | 54.50 | 67.50 | 84.00 | 97.50 | 123.50 |
| O | 18.00 | 24.00 | 25.00 | 32.00 | 35.00 | 41.00 | 45.00 | 45.00 | 53.90 | 63.00 | 69.00 | 81.00 |

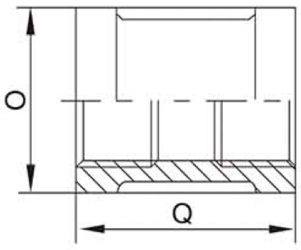

ENCHUFE DE REDUCTOR CON BANDA
(HPL027)
| Talla |
1/4 x 1/8" | 3/8 x 1/4" | 1/2 x 3/8" | 3/4 x 1/2" | 1 x 3/4" | 1-1/4 x 1" | 1-1/2 x 1-1/4" | 2 x 1-1/2" | 2-1/2 x 2" | 3 x 2-1/2" | 4 x 3" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | |||||||||||
| O | 18.00 | 20.00 | 25.00 | 30.00 | 38.00 | 47.00 | 53.50 | 66.00 | 83.00 | 98.00 | 122.50 |
| P | 25.50 | 29.00 | 31.00 | 33.50 | 37.50 | 43.00 | 47.50 | 51.50 | 63.50 | 71.50 | 77.00 |

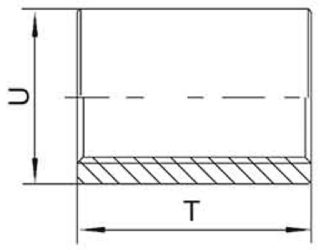

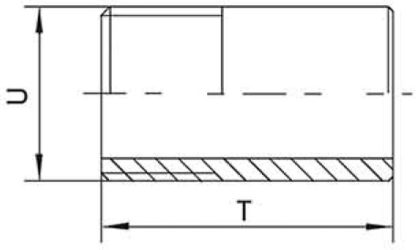

Enchufe O.D.mecanizado
(HPL028)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| U | 15.00 | 18.00 | 21.00 | 25.00 | 30.50 | 37.00 | 46.50 | 52.50 | 65.10 | 81.50 | 95.00 | 122.00 |
| T | 18.00 | 24.50 | 26.00 | 33.00 | 35.00 | 42.00 | 45.00 | 45.00 | 54.50 | 63.50 | 68.50 | 81.00 |

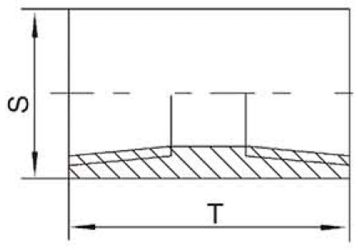

Enchufe Liso
(HPL029)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| S | 15.00 | 18.00 | 21.00 | 25.00 | 30.50 | 37.00 | 46.50 | 52.50 | 65.10 | 81.50 | 95.00 | 122.00 |
| T | 18.00 | 24.50 | 26.00 | 33.00 | 35.00 | 42.00 | 45.00 | 45.00 | 54.50 | 63.50 | 68.50 | 81.00 |

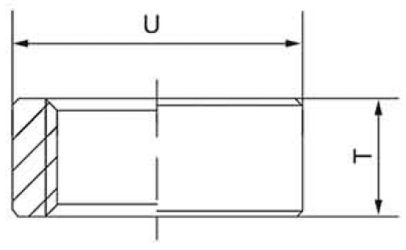

1/2 Enchufe O.D.mecanizado
(HPL030)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| U | 15.00 | 18.00 | 21.00 | 25.00 | 30.50 | 37.00 | 46.50 | 52.50 | 65.10 | 81.50 | 95.00 | 122.00 |
| T | 11.00 | 12.00 | 12.50 | 17.00 | 17.20 | 19.50 | 21.50 | 21.50 | 27.50 | 30.50 | 35.50 | 41.50 |

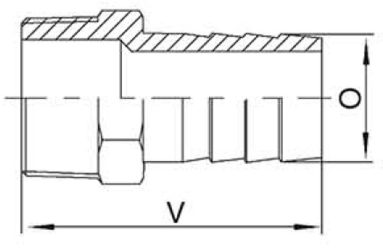

Niples de manguera
(HPL031)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| O | 7.00 | 9.00 | 11.00 | 12.70 | 19.00 | 25.40 | 31.80 | 38.10 | 50.80 | 63.50 | 76.10 | 102.00 |
| V | 35.00 | 41.00 | 42.50 | 51.00 | 57.00 | 63.50 | 66.00 | 78.00 | 84.00 | 102.00 | 115.00 | 120.00 |
Niples roscados
(HPL038)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| L | 16.00 | 18.00 | 22.00 | 25.30 | 30.00 | 35.00 | 38.00 | 38.00 | 45.00 | 55.00 | 60.00 | 70.00 |

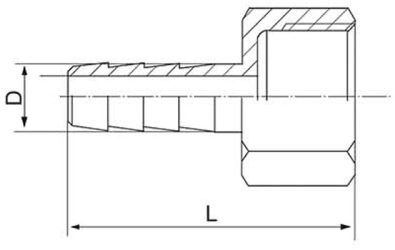

NIPLES DE MANGUERA HEXAGONAL HEMBRA
(HPL039)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| D | 7.00 | 9.00 | 9.50 | 12.70 | 19.50 | 25.40 | 31.80 | 38.10 | 51.40 | 63.5 | 76.1 | 102 |
| L | 32.00 | 38.50 | 38.00 | 44.50 | 53.00 | 59.60 | 66.50 | 76.00 | 80.50 | 95.0 | 109.5 | 114 |

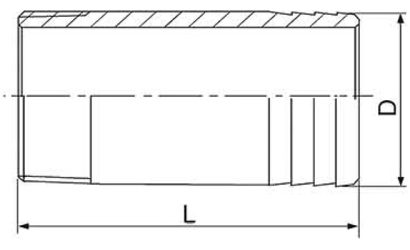

Niples de manguera macho
(HPL040)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| D | 9.00 | 13.00 | 16.00 | 20.00 | 25.50 | 32.40 | 41.00 | 47.00 | 59.00 | 71.50 | 87.40 | 112.8 |
| L | 47.00 | 49.00 | 55.00 | 63.00 | 72.00 | 82.00 | 83.00 | 87.00 | 96.00 | 103.0 | 111.0 | 123.0 |

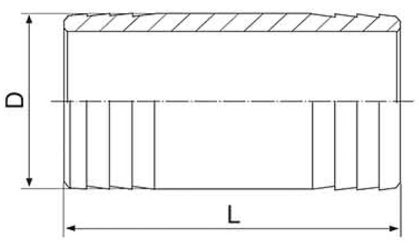

Niples de manguera dobles
(HPL041)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| D | 3.20 | 6.40 | 9.50 | 12.70 | 15.90 | 25.40 | 31.80 | 38.10 | 50.80 | 63.50 | 76.10 | 102.0 |
| L | 62.00 | 66.00 | 76.00 | 86.00 | 100.0 | 114.0 | 114.0 | 122.0 | 130.0 | 140.0 | 150.0 | 156.0 |

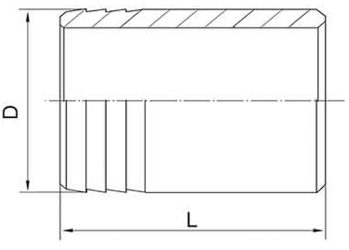

BW Niples de manguera
(HPL042)
| Talla |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artículo | ||||||||||||
| D | 9.00 | 13.00 | 16.00 | 20.00 | 25.50 | 32.40 | 41.00 | 47.00 | 59.00 | 71.50 | 87.40 | 112.80 |
| L | 36.00 | 38.00 | 43.00 | 48.00 | 55.00 | 62.00 | 62.00 | 66.00 | 70.00 | 75.00 | 80.00 | 83.00 |
