FLANGE END

BALL VALVES

FEATURES

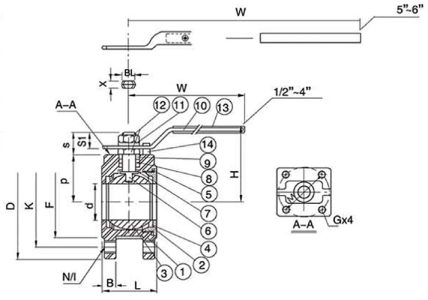

DN	d	L	D	K	N/1	B	F	P	S	S1	X	BL	ISO5211G	H	W	CvFactor	Torquekgf-cm
15	15	40	95	65	4-M 12	14	45	34.5	17	10.5	6.5	10	F03	63	125	10	58
20	20	44	105	75	4-M 12	16	58	38.5	17	10.5	6.5	10	F03	68	125	25	80
25	25	53	115	85	4-M 12	16	68	44.6	24	16.5	8.7	14	F04	81	160	35	108
32	32	58.4	140	100	4-M 16	16	78	51	24	16.5	8.7	14	F04	87	160	46	150
40	38	62	150	110	4-M 16	16	88	55	29	21	10	16	F05	98	200	80	200
50	50	72	165	125	4-M 16	18	102	63	29	21	10	16	F05	105	200	110	300
65	65	94	185	145	4-M 16	18	122	73.5	36	26	12	20	F07	121	250	310	515
80	76	118	200	160	8-M 16	20	138	94	36	26	12	20	F07	153	285	350	810
100	96	140	220	180	8-M 16	20	158	105.5	36	26	12	20	F07	164	338	720	1130
